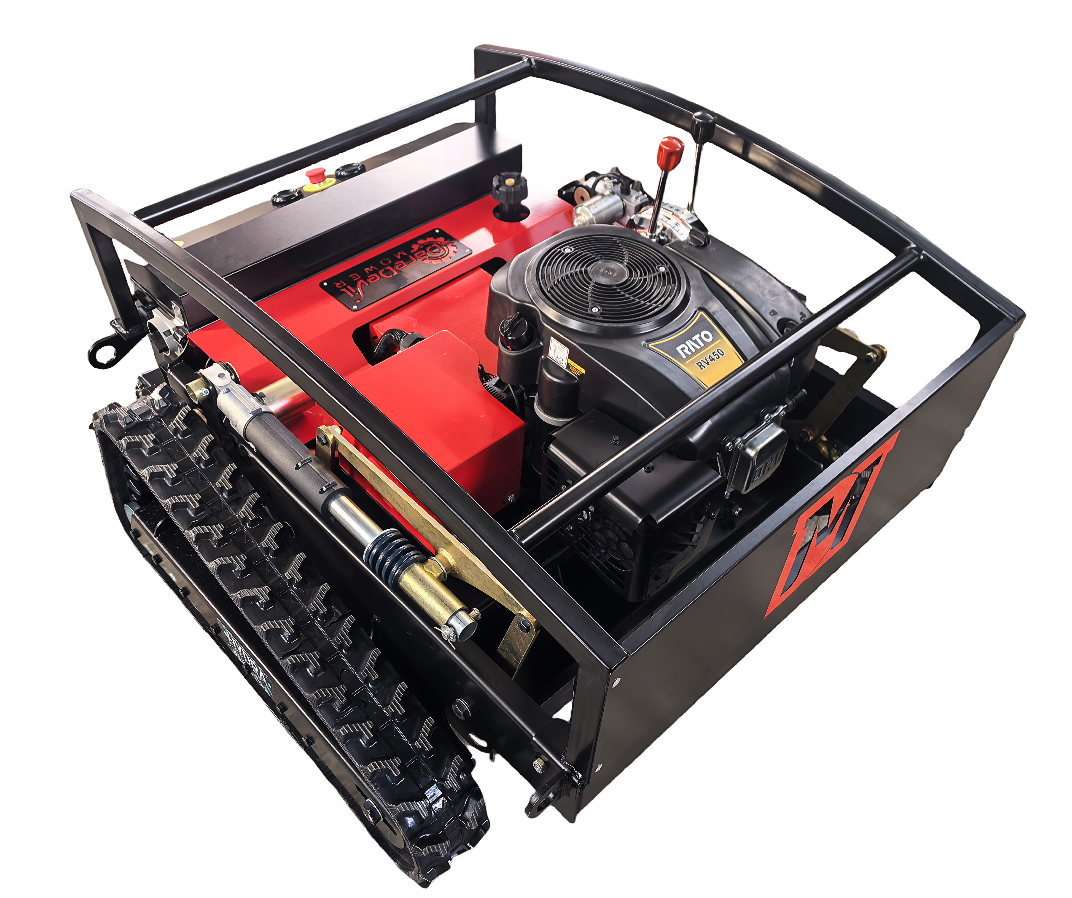

Machine Specifications (HYDRA 16HP – Personal / Commercial Use)

• Dimensions: 46.46 × 45.67 × 27.56 inches

• Weight: 662 lbs

• Track width: 4.72 inches

• Cutting width: 31.5 inches

• Cutting height: 1.2 – 5.9 inches (adjustable)

• Remote control distance: 300 meters

• Working slope: 45°

• Engine start/off: Remote control

Engine Specifications

• Horsepower: 16 HP

• Structure type: Single-cylinder, four-stroke

• Rated speed: 3600 RPM

• Fuel type: Gasoline

• Fuel tank capacity: 8 L

• Fuel consumption: 1.5 – 2 L/

Fuel Consumption Rate	Runtime per Tank (6L)
1.5 L/h (light load)	~4 hours
2.0 L/h (heavy load)	~3 hours

Electrical & Drive System

• Drive motors (for tracks): 2000W

• Operating voltage: 12V 20Ah × 4

• Rotating speed: 3600 RPM

• Battery type: Dry-charged battery

• Remote battery voltage: 12V

• Walking battery voltage: 20Ah × 4

• Charging type: Plug-in and generator

• Dynamo (alternator/generator) rated power: 5000W

Blade & Cutting System

• Number of blade sets: 1 set (2 pieces)

Special Features

• Clutch: Engage/disengage blades while the engine runs, allowing batteries to stay charged (ideal for snowplow attachment)

• Self-propelled

• Zero-turn steering

• DC brushless motor

• Auto parking brake

• Patented gearbox

• C bumper protection

List of components included in the crate:

1. Fan ( 1)

2. Filter Element (1)

3. 48V Charger(1)

5. Blades (2) Spare
